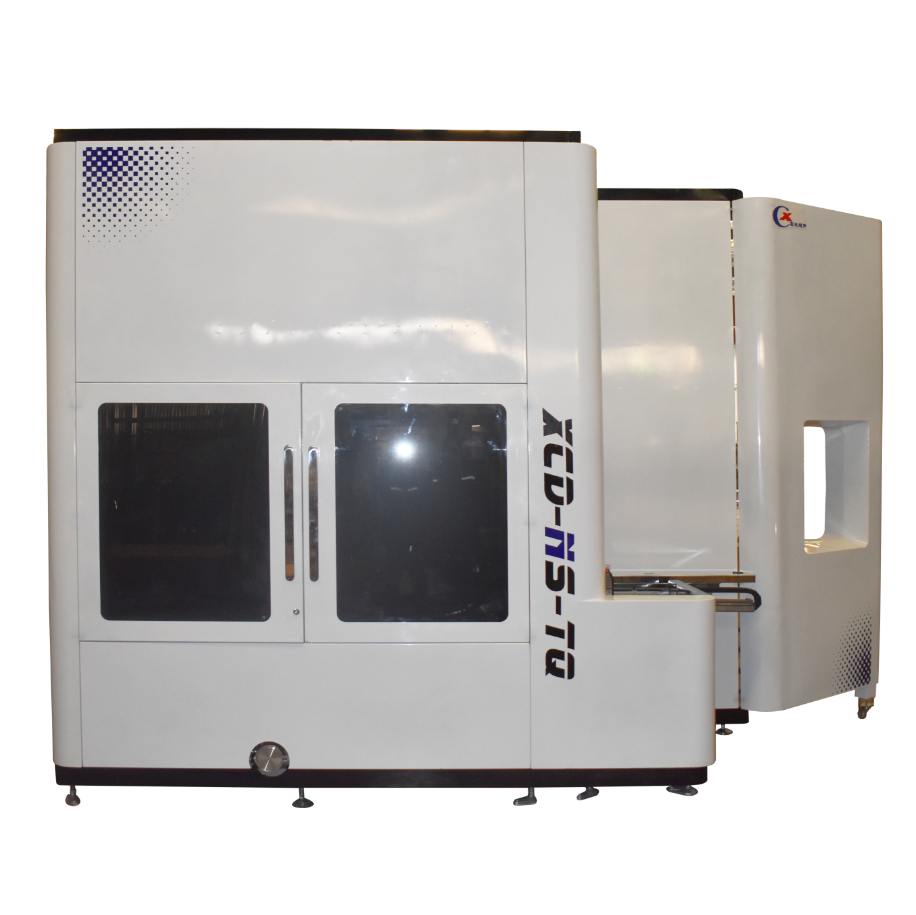

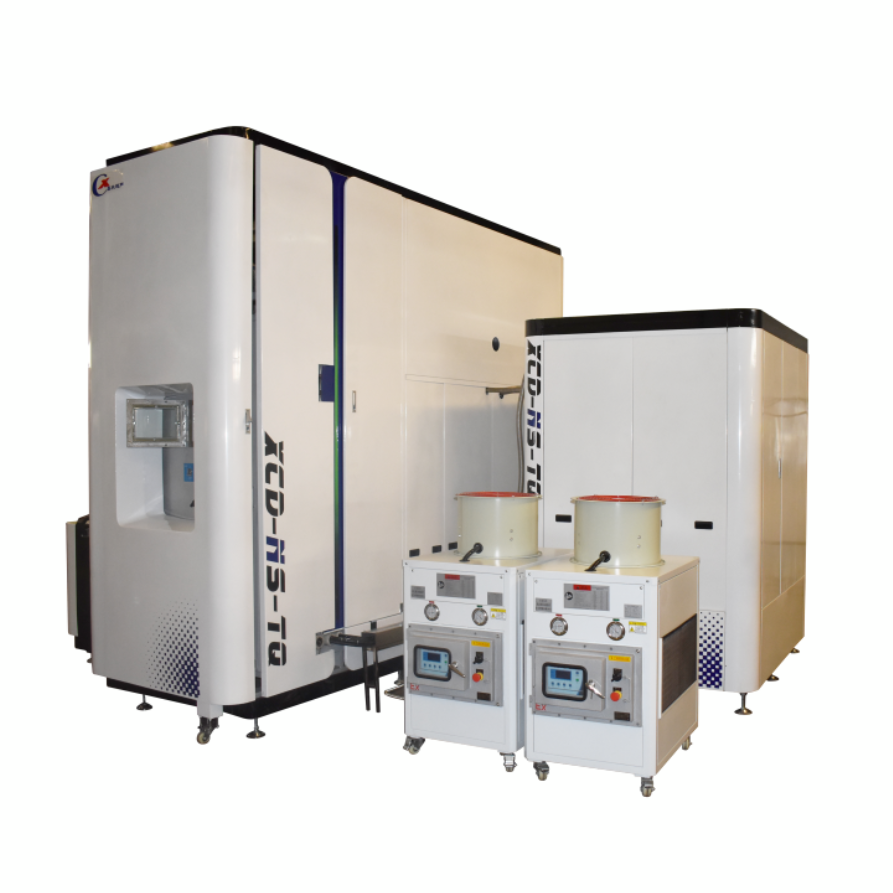

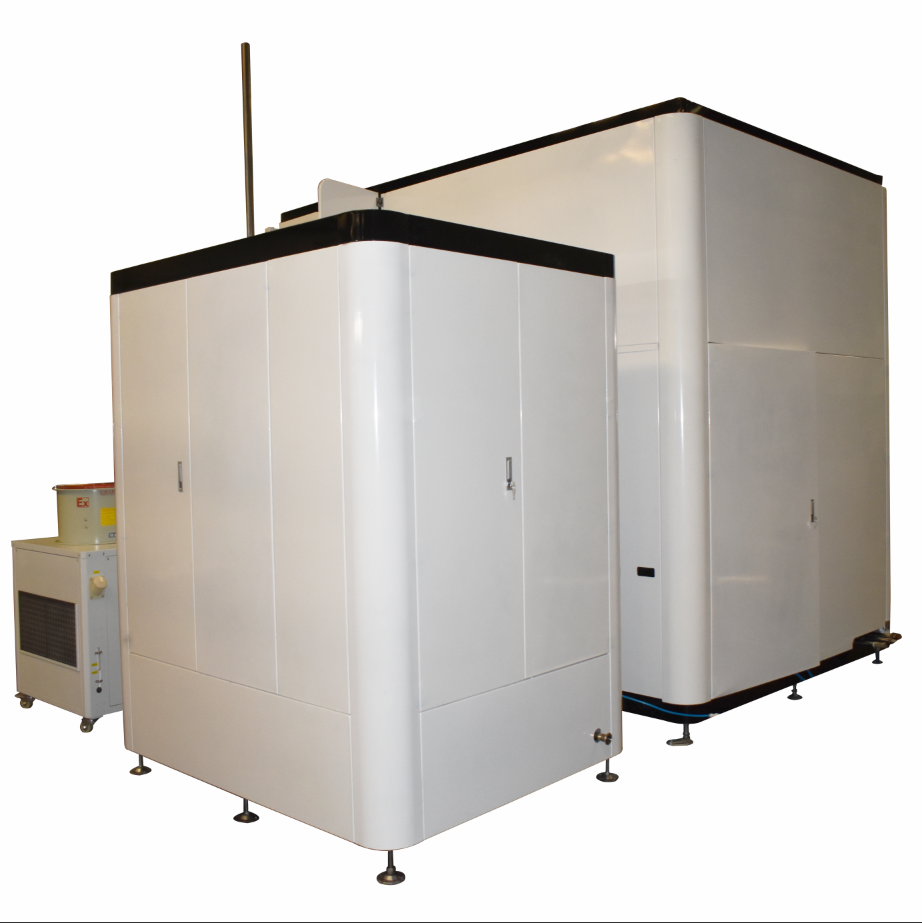

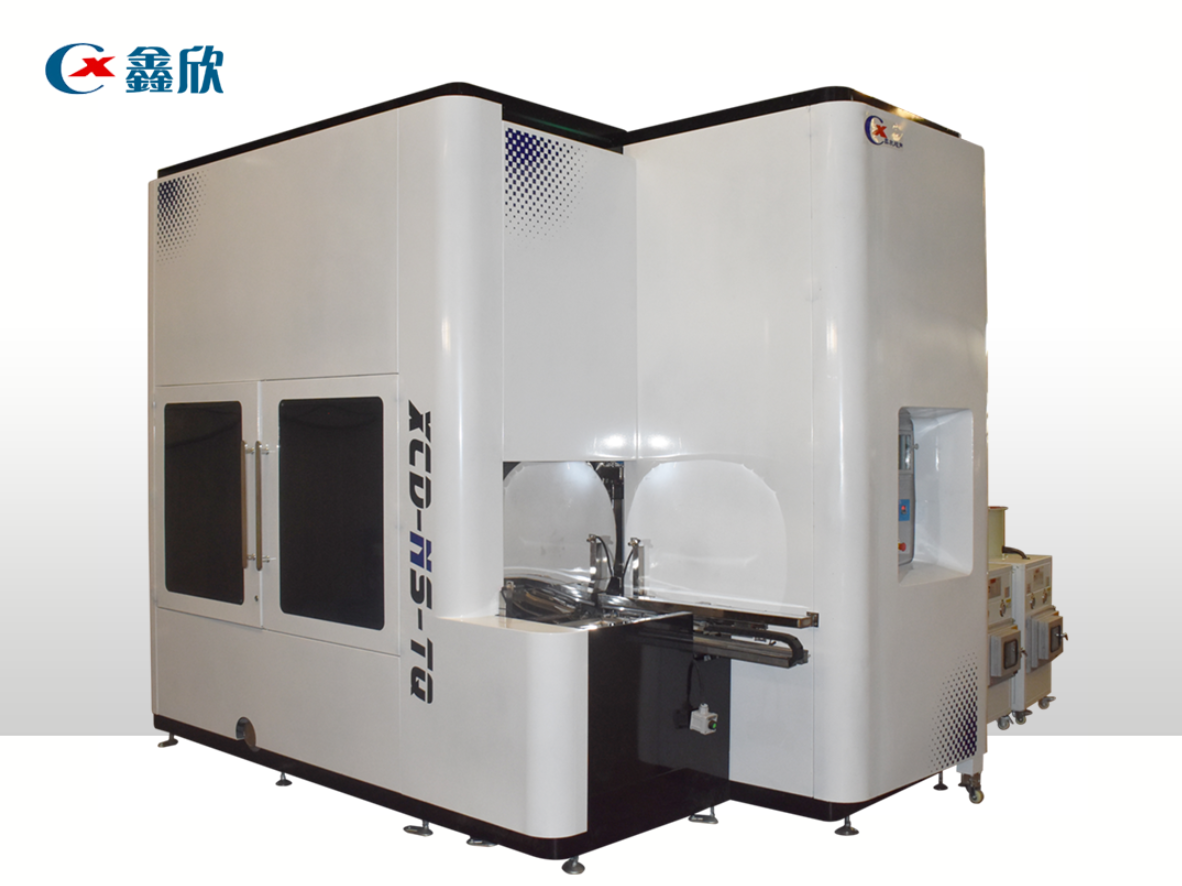

The fully automatic enclosed hydrocarbon vacuum ultrasonic cleaning and drying machine adopts vacuum ultrasonic cleaning and vacuum drying technology, combined with a closed structure design, to ensure the environmental protection of the cleaning process. The equipment is a fully automatic single cylinder multi-stage hydrocarbon vacuum cleaning and drying device. 1 set of vacuum ultrasonic hydrocarbon cleaning system, 1 set of vacuum hydrocarbon steam bath cleaning system, 1 set of vacuum boiling drying system, 1 set of main tank body, 1 set of waste liquid tank, 1 set of distilled new liquid storage tank, 1 set of hydrocarbon distillation (explosion-proof) recovery system, 1 set of vacuum system (explosion-proof), 1 set of automatic alarm and fire extinguishing device (explosion-proof), 1 set of heating explosion-proof system (intermittent heating of thermal oil), 1 set of electronic control system, 1 set of mist treatment system (explosion-proof), 1 set of stacking basket and material frame feeding tank mechanical arm mechanism (pneumatic), 1 set of workpiece basket rotation mechanism, 1 set of equipment frame outer sealing plate, as well as PLC+touch screen control system, pipeline system and Composed of intelligent explosion-proof electrical control system equipment, etc. The equipment has good cleaning effect and improves the cleanliness of the workpiece. The machine has a reasonable structural design and process arrangement, high degree of automation, and high cleaning accuracy, effectively solving the cleaning problem of such workpieces.

Manual feeding → (automatic stacking basket) feeding → ① Vacuum ultrasonic cleaning (liquid evacuation) → ② Vacuum steam bath washing → ③ Vacuum boiling drying → Discharge (basket automatically sent to the rotary material channel) → Manual unloading
